VS Code project template

FrSkyRC/ethos-lua-vscode-template is a complete VS Code project for Ethos Lua scripts. Press ▶ to deploy to the simulator or a USB radio, stream the radio's print() output, translate your script, and publish installable release zips from a git tag.

The deploy tooling is the same one large open-source Ethos suites use every day, with the project-specific parts removed. To understand how it works underneath (USB HID, drive discovery, safe copying), read VS Code deployments.

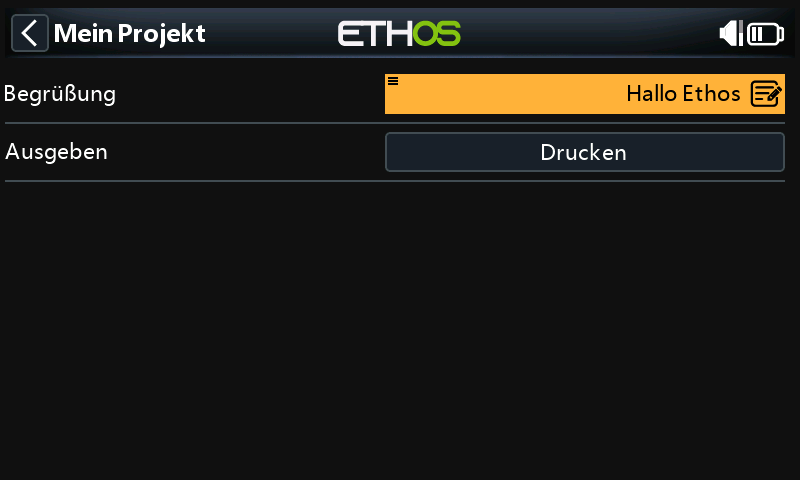

The template's starter tool on an X20S, deployed in German The template's starter tool in the Ethos 26.1 simulator, deployed with the German translation.

Quick start

  1. On GitHub, click Use this template → Create a new repository, then clone it.
  2. Install Python and VS Code.

  3. Rename the starter project:

    python .vscode/scripts/new_project.py mywidget --title "My Widget" --key com.yourname.mywidget

  4. Open the folder in VS Code and accept the recommended extensions (Ethos, Python, Python Debugger, Lua).

  5. Click the Ethos status-bar item → pick radio, protocol and release.
  6. Run and Debug (Ctrl+Shift+D) → Deploy & Launch [SIM] → ▶.

Installing Python

The play buttons run Python scripts, so you need Python 3.10 or newer once per computer.

Install from python.org/downloads. On the first installer screen tick Add python.exe to PATH. Open a new terminal and check:

python --version


brew install python      # https://brew.sh, or use the python.org installer
python3 --version

sudo apt install python3 python3-pip
python3 --version

Then in VS Code: Ctrl+Shift+P → Python: Select Interpreter and choose it. The play buttons use the interpreter you select here.

You don't need to install packages by hand. The first deploy installs tqdm, pyserial, hidapi (and pywin32 on Windows) into that interpreter. To do it yourself: python -m pip install tqdm pyserial hidapi pywin32.

What you change per project

The one table to read

Everything you edit is listed here. .vscode/scripts/, bin/package/ and .github/ are shared tooling: don't edit them. That way you can update them from the template later, and every project built on it behaves the same.

File Change Set by new_project.py?
src/<project>/ Your Lua code: everything that runs on the radio (deployed to SCRIPTS:/<project>/) Folder renamed
.vscode/deploy.json → tgt_name Project folder name; must match src/<project>/ ✔
src/<project>/main.lua → BASE SCRIPTS:/<project>/, the absolute path for files used from callbacks (why) ✔
src/<project>/ethos_lua_manifest.json name, key, version, introduction. key never changes after the first release ✔ (name, key, folder)
src/<project>/widget.lua → key Widget key, max 7 chars. Never changes after release ✔
i18n/<lang>.json Your text, one file per language project.name in en.json
.vscode/launch.json → inputs.deployLanguage.options The languages offered by Set Deployment Language
.vscode/settings.json → ethos.board / protocol / release The simulator, normally set through the Ethos extension
.vscode/deploy.json → serial_*, ethossuite_bin Only for unusual radios. FrSky Suite is optional
Releases.md Release notes, one # X.Y.Z section per version
README.md, AGENTS.md Describe your project src/ paths

The play buttons

Each entry in the Run and Debug dropdown is a launch.json configuration. Its preLaunchTask runs a task from tasks.json, which calls the deploy script with the Python interpreter you selected:

flowchart LR
  P["▶ Deploy & Launch [SIM]<br/>(launch.json)"] -->|preLaunchTask| T["task: deploy.py --lang de --step i18n<br/>(tasks.json)"]
  T --> S["simulators/X20S_FCC@nightly26/scripts/myproject/"]
  P -->|postDebugTask| E["ethos.start<br/>(Ethos extension)"]
▶ Configuration Runs Result
Deploy & Launch [SIM] deploy.py --lang <lang> --step i18n → ethos.start Mirrors src/<project>/ into the selected simulator, resolves translations, starts the simulator
Deploy Radio deploy.py --radio ... Finds the radio over USB HID, switches to storage if needed, waits for its drive, full copy, then switches the radio to serial mode so it releases USB storage and runs the new code
Deploy Radio [Fast] --fileext fast --radio Copies only changed files (MD5) and removes deleted ones. The everyday choice
Deploy Radio + Serial Debug (and [Fast]) ... --radio-debug Deploys, then streams the radio's print() output until stopped
Radio: Serial Debug --radio --connect-only No copy; stream print() output
Simulator: Set Simulator / Open Controls / Open Telemetry Ethos extension commands
Set Deployment Language set_language.py <lang> Sets ethos.deploy.language for every deploy
Package: Build Zip [current language] / [all languages] bin/package/build_package.py Installable zips in dist/
Debug Radio Connection debug_connection.py Diagnoses USB/HID/drive detection
Clear locks deploy.py --clear-lock Removes a stale lock after a crashed deploy

Deploy steps. --step <name> runs .vscode/scripts/deploy_step_<name>.py --out-dir <deployed folder> --lang <lang> --git-src <repo> after copying, on a local staging copy for radio deploys. The template ships i18n and a commented example step that writes build_info.lua. Add your own for generated files, sound packs, or stripping debug files.

Translations

User-facing text goes in Lua strings as tags, and the words go in i18n/<lang>.json:

local line = form.addLine("@i18n(tool.greeting)@")

{ "tool": { "greeting": "Greeting" } }

{ "tool": { "greeting": "Begrüßung" } }

Deploys and packages replace each tag with the selected language's text, falling back to English. On the radio the code is plain text with no lookup cost and no translation tables in RAM, which is why large projects use this approach rather than loading translations at runtime. Tags can transform text (@i18n(tool.print):upper()@, :truncate(8)); python .vscode/scripts/resolve_i18n_tags.py --list-transforms lists them. Missing keys are reported after each deploy.

For runtime language switching without a build step, see Translations.

Releases and git tags

Users install your script with FrSky Suite → Lua library → Install from local .zip or the web simulator's Upload a Lua plugin. The template builds those zips (one per language, each with a generated ethos_lua_manifest.json) and publishes them from a git tag.

To release version 1.2.0:

  1. Set "version": "1.2.0" in src/<project>/ethos_lua_manifest.json.

  2. Add a section at the top of Releases.md:

    # 1.2.0

- New: battery percentage
- Fixed: font on small screens

***

  3. Commit, then tag and push the tag:

    git commit -am "Release 1.2.0"
git push
git tag release/1.2.0
git push origin release/1.2.0

The Release workflow builds a zip per i18n/*.json language, validates each manifest, and publishes a GitHub release with the Releases.md notes. The same notes appear in FrSky Suite's Lua library.

Tag Publishes
release/1.2.0 Release
release/1.2.0-rc1 Release Candidate (pre-release)
snapshot/1.2.0-dev3 Snapshot (pre-release)

The manifest needs a numeric X.Y.Z, so 1.2.0-rc1 installs as 1.2.0. The full label is kept in build_info.lua inside the zip (return { version = "1.2.0-rc1", lang = "de", commit = "...", built = "..." }), which your script can read at load time.

Wrong tag? git tag -d release/1.2.0 && git push --delete origin release/1.2.0, and delete the GitHub release.

The CI workflow runs on every push and pull request. It builds every language, syntax-checks every Lua file with luac5.4 -p after translation, validates the manifests, and attaches test zips to the run.

Tested

Checked on Windows with the X20S simulator (Ethos 26.1):

  • rename → simulator deploy in German → boot with no Lua errors → tool opened with translated labels (screenshot above) → print() output ([hellow] Hallo Ethos) in the log;
  • --all-langs packaging → both zips pass the manifest validator → luac5.4 -p on every file → CI green on GitHub.

The radio deploy path is the suites' code, unchanged apart from names. The USB protocol it uses (HID storage/serial switching, *.cpuid drive discovery, incremental copy) was verified on an X20S in VS Code deployments. The template's own --radio run so far has only shown the expected "radio not on USB" handling, with a clear error after 60 s.
